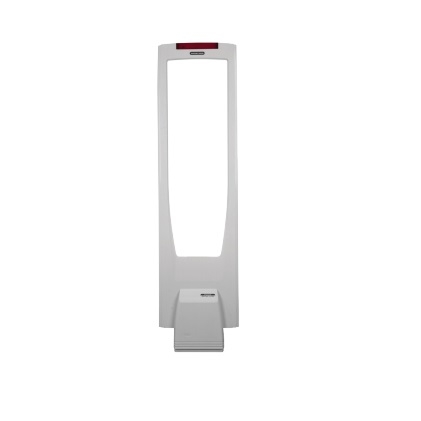

Cổng từ Essentials 1.8m ABS Self-Contained Pedestal

Specifications
Height............................... 137.1cm (4.5ft)
Width .................................35.8mm (14in)
Thickness/Depth Pedestal Thickness.................. 26mm (1in)
Base Thickness .....................8.6cm (3.4in)
Weight .............................9.16kg (20.2lbs)
Electrical
Transmitter
Operating Frequency ....... 58kHz (+200Hz)
Transmit Burst Duration................... 1.6ms
Transmit Current.........................36A peak (in Tx coil) (nominal)
Transmit Current.........................16A peak (in Interconnect cable)
Burst Repetition Rate
Based on 50Hz ac........................... 37.5Hz
Based on 60Hz ac............................. 45Hz
Antenna Coil Resistance...........0.25 ohms (±5%)
Receiver
Center Frequency ........................... 58kHz
